Nodes and connections

Node dimensions and connection rules determine the texture of the artwork. Compare the same kind of graph with different walls, spacing and angles.

Radius, wall and spacing

Ring wall thickness is outer radius minus inner radius. Connection gap separates a line from its endpoint nodes; buffer reserves clearance from unrelated geometry. Length settings describe the visible connection.

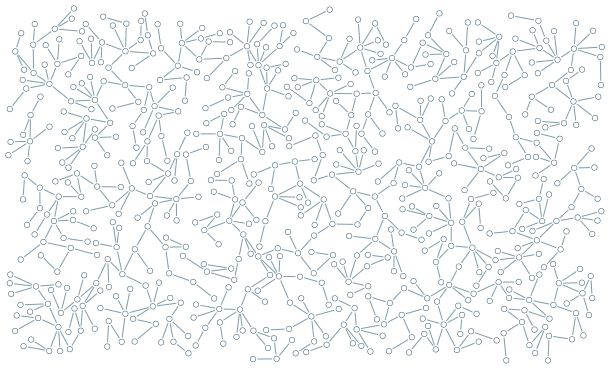

Fine Rings

Radius 3, inner radius 2.5: a 0.5-unit wall.

650 nodes of 650 requested. Stop: target_reached. 240/240 occupied tiles; 100.0% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/fine-rings.yaml --output examples/output/fine-rings.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "node_outer_radius": 3,
    "node_inner_radius": 2.5
  }
}

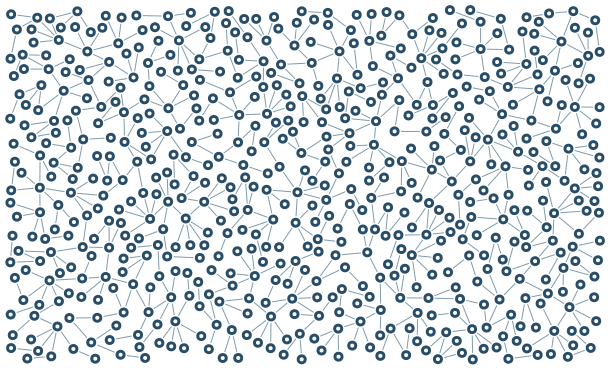

Heavy Rings

Radius 5, inner radius 2: a 3-unit wall. Larger nodes consume more space.

609 nodes of 650 requested. Stop: attempt_budget_exhausted. 240/240 occupied tiles; 100.0% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/heavy-rings.yaml --output examples/output/heavy-rings.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "node_outer_radius": 5,
    "node_inner_radius": 2
  }
}

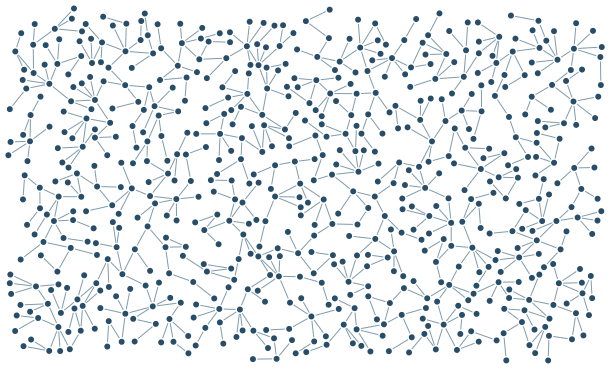

Solid Nodes

Zero inner radius makes a filled node.

650 nodes of 650 requested. Stop: target_reached. 240/240 occupied tiles; 100.0% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/solid-nodes.yaml --output examples/output/solid-nodes.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "node_outer_radius": 3,
    "node_inner_radius": 0
  }
}

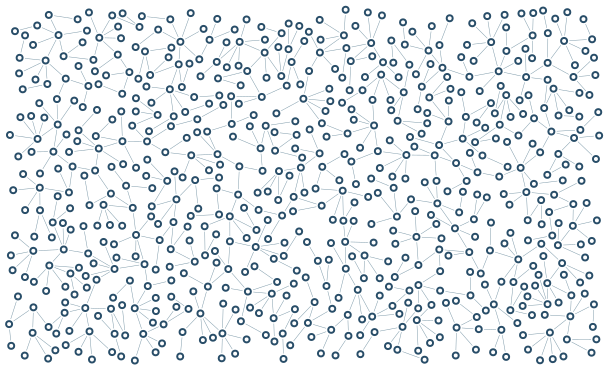

Fine Lines

Connection width 0.5. Zoom in to inspect fine strokes.

650 nodes of 650 requested. Stop: target_reached. 240/240 occupied tiles; 100.0% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/fine-lines.yaml --output examples/output/fine-lines.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "edge_thickness": 0.5
  }
}

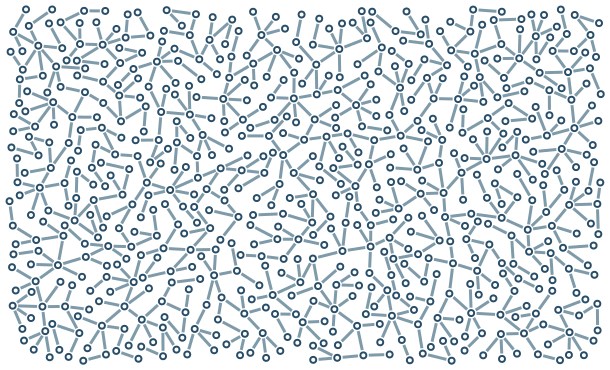

Heavy Lines

Connection width 3. The whole stroke must fit.

650 nodes of 650 requested. Stop: target_reached. 240/240 occupied tiles; 100.0% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/heavy-lines.yaml --output examples/output/heavy-lines.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "edge_thickness": 3
  }
}

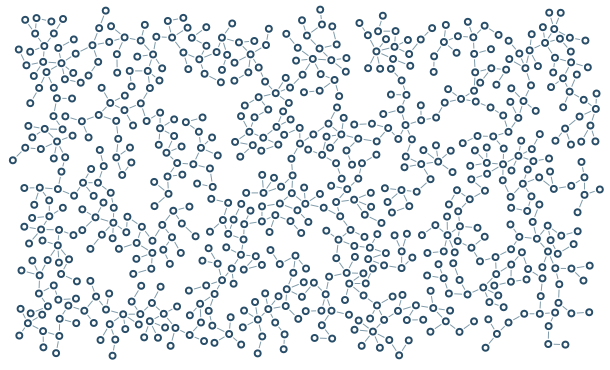

Short Links

Visible connection length 4 to 8; shorter steps create a finer texture.

650 nodes of 650 requested. Stop: target_reached. 230/240 occupied tiles; 95.8% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/short-links.yaml --output examples/output/short-links.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "edge_length_min": 4,
    "edge_length_max": 8
  }
}

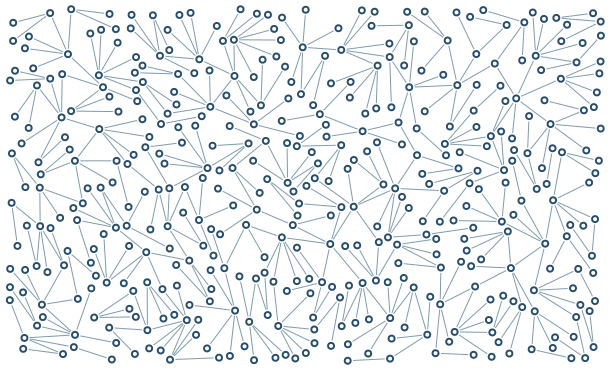

Long Links

Visible connection length 25 to 40; long steps leave larger openings.

432 nodes of 650 requested. Stop: attempt_budget_exhausted. 222/240 occupied tiles; 92.5% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/long-links.yaml --output examples/output/long-links.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "edge_length_min": 25,
    "edge_length_max": 40
  }
}

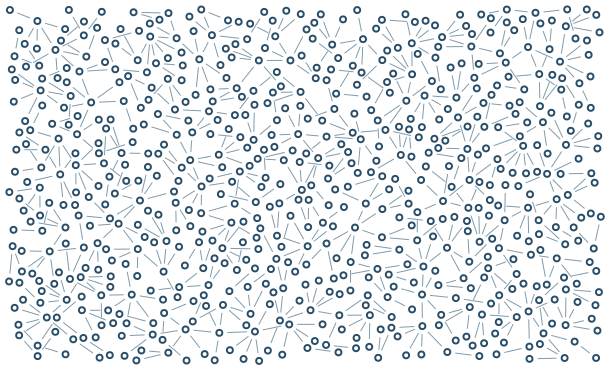

Wide Gaps

Four world units separate each ring from its connection.

650 nodes of 650 requested. Stop: target_reached. 240/240 occupied tiles; 100.0% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/wide-gaps.yaml --output examples/output/wide-gaps.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "edge_node_distance": 4
  }
}

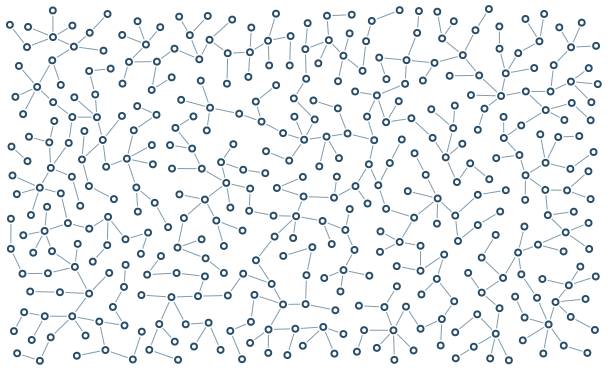

Wide Buffers

A five-unit buffer keeps unrelated nodes and edges further apart.

393 nodes of 650 requested. Stop: attempt_budget_exhausted. 237/240 occupied tiles; 98.8% of tile area has a node. This is a coarse coverage measure, not solid ink coverage.

JSON scene · YAML scene · SVG

Settings and command

graph-ics render --config docs/scenes/wide-buffers.yaml --output examples/output/wide-buffers.png

{
  "version": 1,
  "palette": "porcelain",
  "width": 600,
  "height": 360,
  "nodes": 650,
  "seed": 7,
  "growth": {
    "total_attempts": 35000,
    "refill_passes": 2,
    "coverage": {
      "tile_size": 30,
      "reseed_attempts": 1200
    }
  },
  "style": {
    "node_buffer": 5
  }
}

Node shapes

These vary only the visible node outline. Shape choice is preserved by replay.

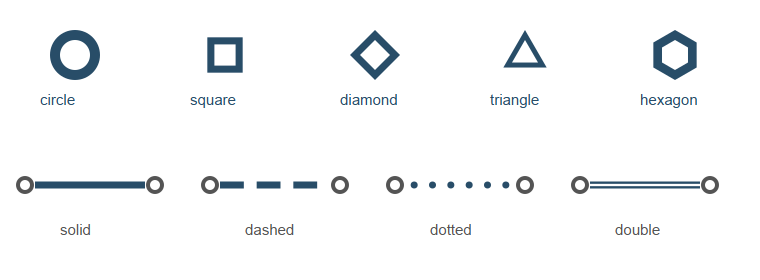

Enlarged shape and connection style key

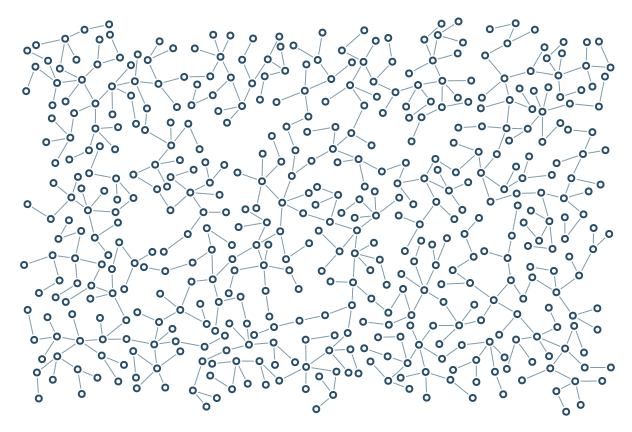

Shape Circle

Same layout and outer radius. Polygon corners fit inside the reserved circle; endpoint gaps can therefore look larger.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style solid --scale 1 --margin 16 --output examples/output/shape-circle.png

SVG

Shape Square

Same layout and outer radius. Polygon corners fit inside the reserved circle; endpoint gaps can therefore look larger.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape square --edge-style solid --scale 1 --margin 16 --output examples/output/shape-square.png

SVG

Shape Diamond

Same layout and outer radius. Polygon corners fit inside the reserved circle; endpoint gaps can therefore look larger.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape diamond --edge-style solid --scale 1 --margin 16 --output examples/output/shape-diamond.png

SVG

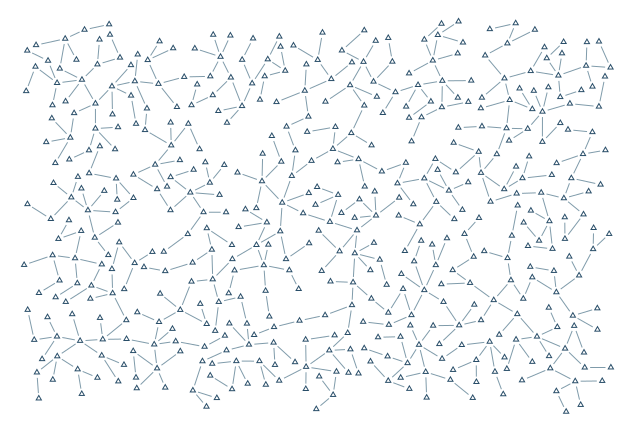

Shape Triangle

Same layout and outer radius. Polygon corners fit inside the reserved circle; endpoint gaps can therefore look larger.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape triangle --edge-style solid --scale 1 --margin 16 --output examples/output/shape-triangle.png

SVG

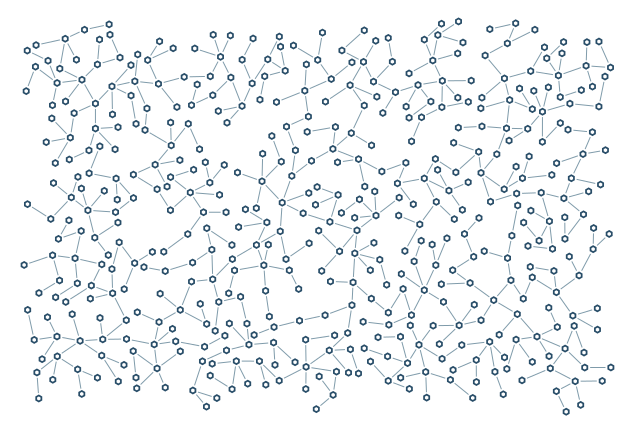

Shape Hexagon

Same layout and outer radius. Polygon corners fit inside the reserved circle; endpoint gaps can therefore look larger.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape hexagon --edge-style solid --scale 1 --margin 16 --output examples/output/shape-hexagon.png

SVG

Connection patterns

Line patterns are rendering styles on straight connections. Curves, arrows and moving paths are not implemented.

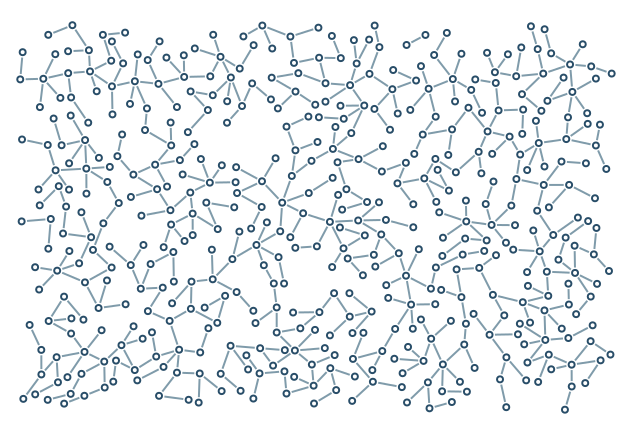

Line Solid

Same layout and full-width collision corridor. Dashed gaps remain reserved; double lines split the width into thirds.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example lines --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style solid --scale 1 --margin 16 --output examples/output/line-solid.png

SVG

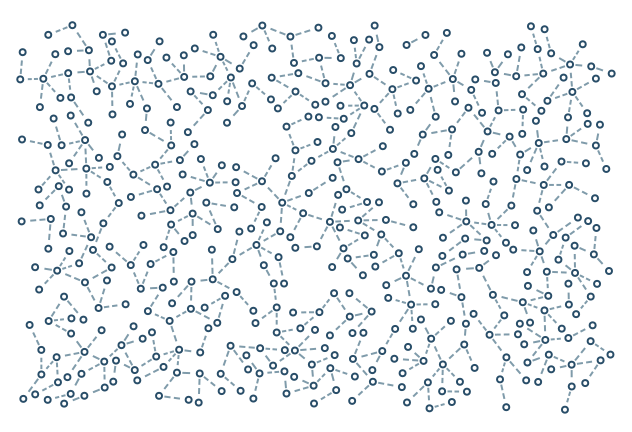

Line Dashed

Same layout and full-width collision corridor. Dashed gaps remain reserved; double lines split the width into thirds.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example lines --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style dashed --scale 1 --margin 16 --output examples/output/line-dashed.png

SVG

Line Dotted

Same layout and full-width collision corridor. Dashed gaps remain reserved; double lines split the width into thirds.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example lines --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style dotted --scale 1 --margin 16 --output examples/output/line-dotted.png

SVG

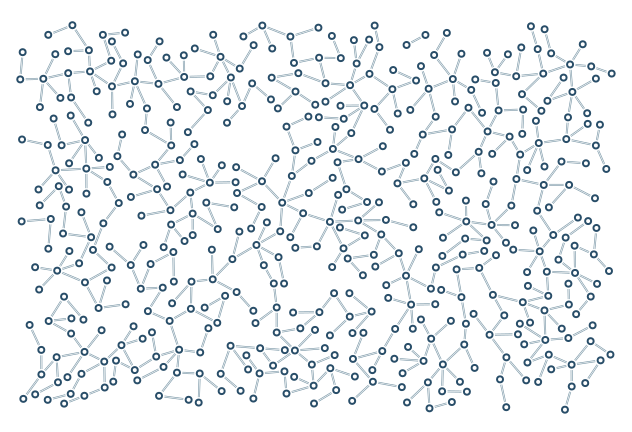

Line Double

Same layout and full-width collision corridor. Dashed gaps remain reserved; double lines split the width into thirds.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example lines --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style double --scale 1 --margin 16 --output examples/output/line-double.png

SVG

Angle restrictions

Hard rules forbid small junctions; soft penalties merely make them less likely. Stricter settings change the subsequent random growth and can reduce coverage.

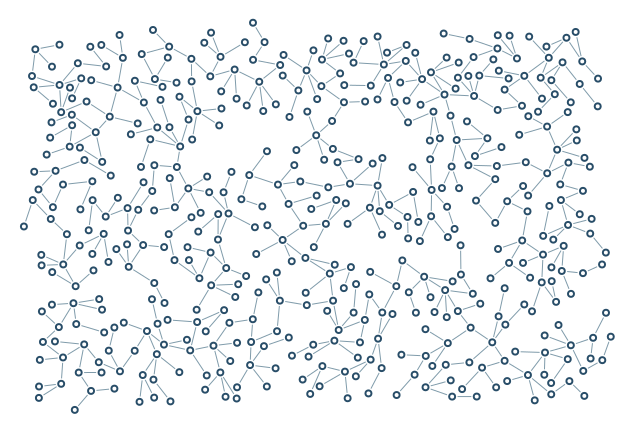

Angles Free

Hard minimum 0 degrees; preference 0; penalty 0. Identical seed and target, different rejection decisions.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style solid --scale 1 --margin 16 --minimum-angle 0 --preferred-angle 0 --angle-penalty 0 --output examples/output/angles-free.png

SVG

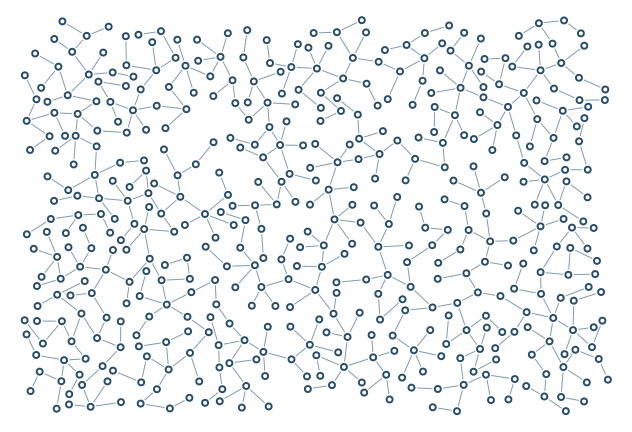

Angles Hard 45

Hard minimum 45 degrees; preference 0; penalty 0. Identical seed and target, different rejection decisions.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style solid --scale 1 --margin 16 --minimum-angle 45 --preferred-angle 0 --angle-penalty 0 --output examples/output/angles-hard-45.png

SVG

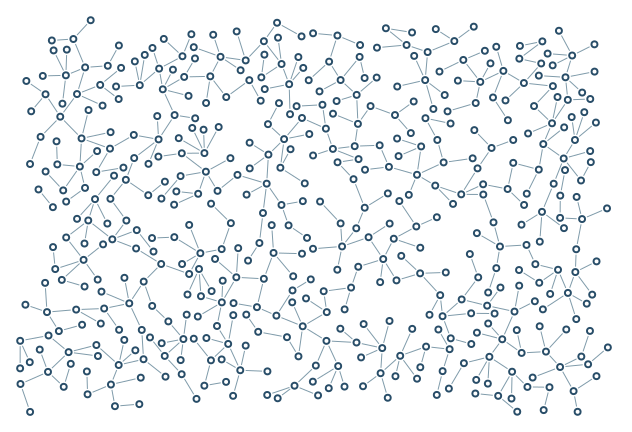

Angles Soft 80

Hard minimum 0 degrees; preference 80; penalty 0.9. Identical seed and target, different rejection decisions.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style solid --scale 1 --margin 16 --minimum-angle 0 --preferred-angle 80 --angle-penalty 0.9 --output examples/output/angles-soft-80.png

SVG

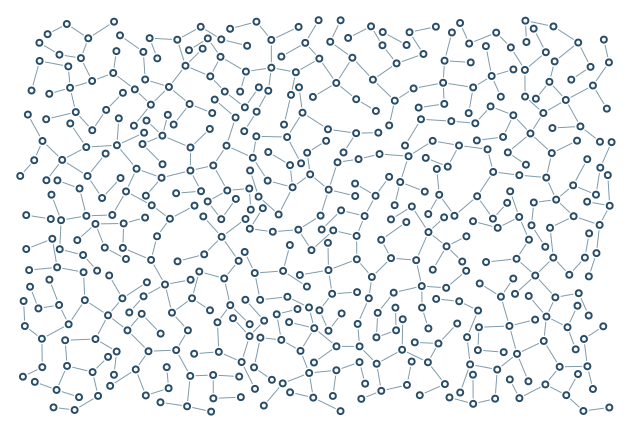

Angles Strict 60 90

Hard minimum 60 degrees; preference 90; penalty 0.9. Identical seed and target, different rejection decisions.

632 × 432; 480 nodes

Reproduce / SVG

graph-ics render --example sprawl --palette porcelain --nodes 480 --seed 7 --node-shape circle --edge-style solid --scale 1 --margin 16 --minimum-angle 60 --preferred-angle 90 --angle-penalty 0.9 --output examples/output/angles-strict-60-90.png

SVG

All geometry parameters and units
